Inverter generator KS 5500iE S ATSR

Name: Inverter generator KS 5500iE S ATSR
Brand: Könner & Söhnen
SKU: 4260405365579
Price: 1459.0 EUR
Availability: InStock

Available

€1.459,00

Specification

Voltage, V:	230
Max power, kW:	5.5
Nominal power, kW:	5.0
Engine start:	Manual/electric
Outlets:	1 x Schuko 230 V, 1 x CEE 230 V 32 A

Specification

Voltage, V	230
Max power, kW	5.5
Nominal power, kW	5.0
Power factor, cosφ	1
Frequency, Hz	50
Current (max), A	23.9
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A
Engine start	Manual/electric
Fuel tank volume, l	13.5
Runtime at 50% load, h***	8.4
LED display	Multifunctional: load, fuel level, voltage, frequency, working hours; overload indicator, voltage indicator, oil level indicator
Noise level Lpa (7m)/Lwa, dB	66/97
Power output DC, V/А	12V/8.3A
USB-Outputs	5V/1A, 5V/2.1A
Engine model	KS 330i
Engine cylinder volume, cm3	312
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp	9.5
Possibility of parallel connection	+
Output for ATS	+
Crank case volume, l	0.85
Accumulator (A·h)	1.6
Alternator winding	Copper
Protection class	IP23M
Includes	Generator, Packaging, Manual, Spark plug wrench, Screwdriver PH2 6.0 mm, Cable for parallel connection, Funnel, 16 A Schuko plug, 32 A CEE plug

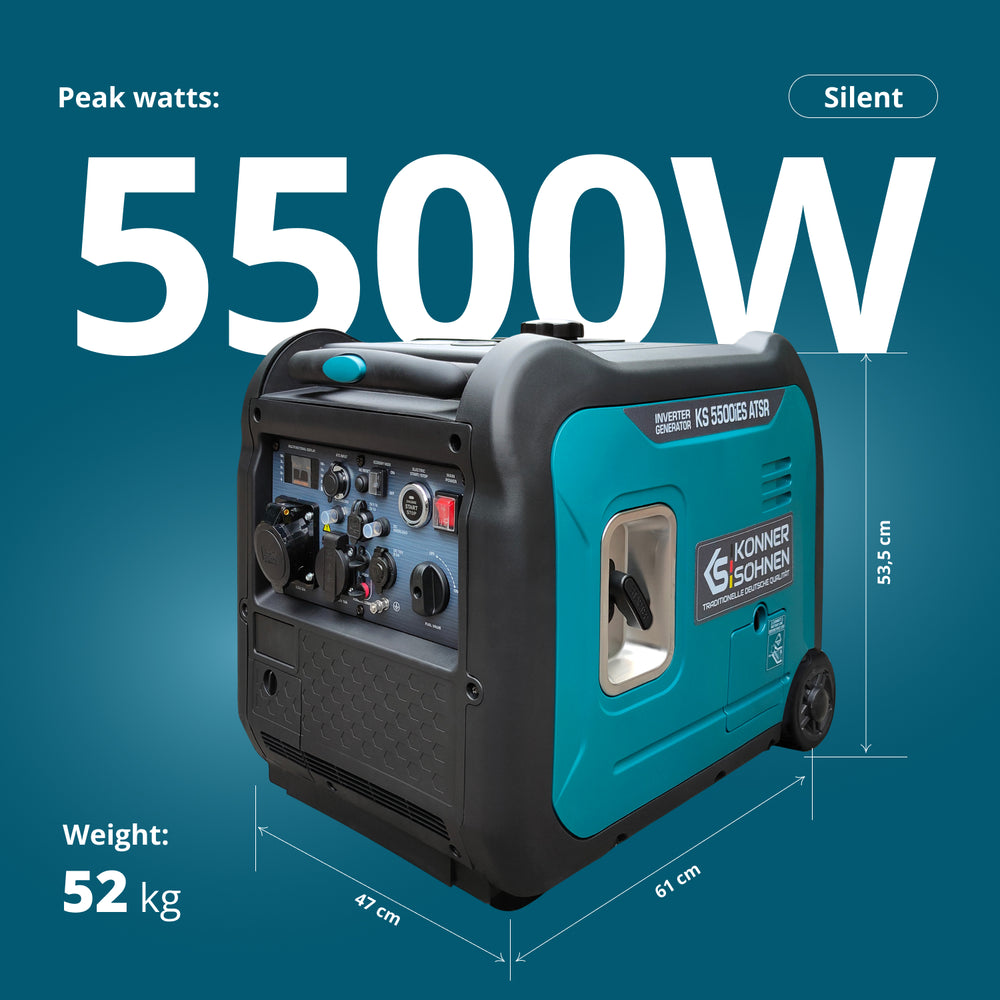

Net dimensions (LxWxH), mm	610х470х535
Gross dimensions (LxWxH), mm	680x510x605
Net weight, kg	52
Gross weight, kg	57.8
SKU	KS 5500iE S ATSR
Barcode	4260405365579

Benefits

Ideal for sensitive electronics, with a 5 kW power output sufficient for the needs of a private home
Economical mode reduces fuel costs by nearly half
Multifunctional LED display allows monitoring of generator performance and timely maintenance
Noise-reducing enclosure provides low noise levels and protection against dust and splashes
Option to connect an ATS system for automatic generator startup during power outages

Delivery

Free shipping: receive your order in just 1–5 business days. Please note that delivery delays may occur due to public holidays observed by shipping carriers.

Payment

We offer a wide range of secure and convenient payment methods, including:

Features

01 Pure sine wave

02 Robust engine

03 Economy mode

04 Automatic transfer switch

05 Ergonomic control panel

06 Low noise level

07 High quality alternator

08 Parallel connection

09 Accessories set

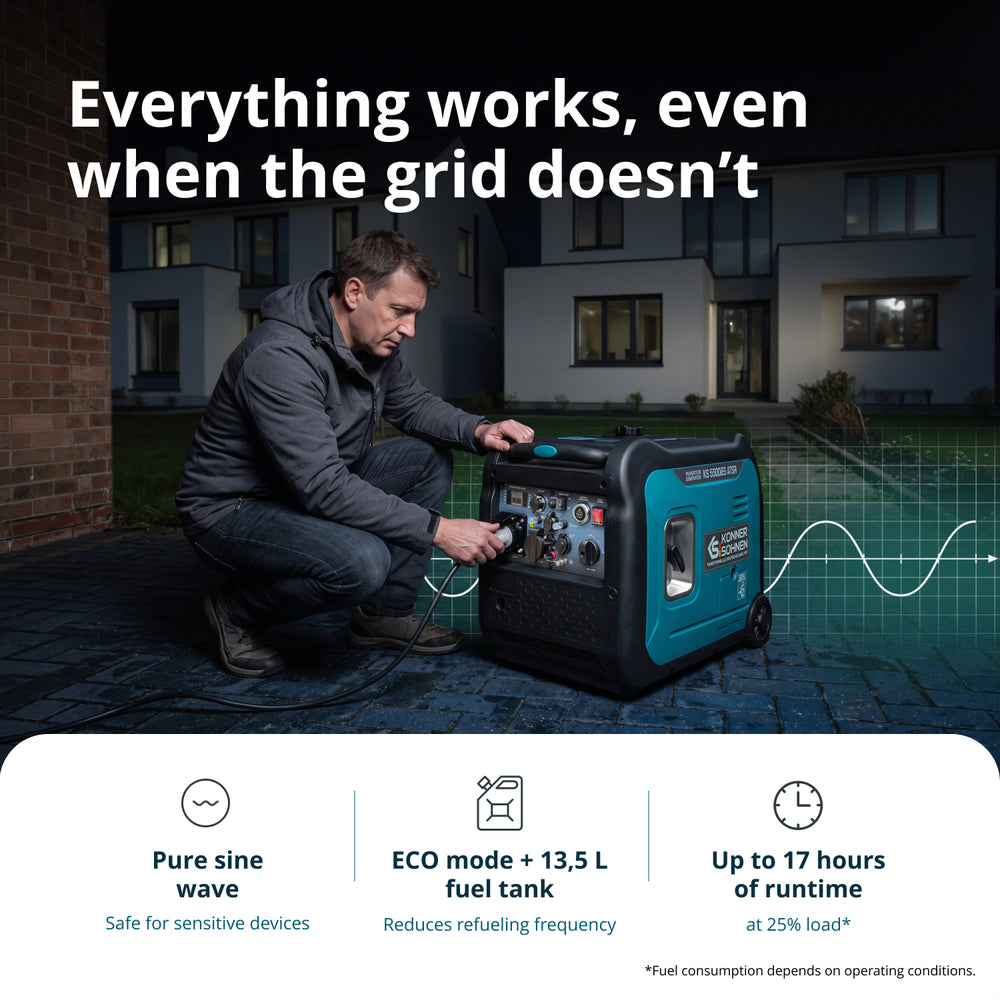

Pure sine wave

The built-in electronic unit with microprocessor control monitors the operation of the generator and provides a stable output voltage of 230V 50Hz sinusoidal form, which is suitable for the reliable operation of sensitive electronics.

Robust engine

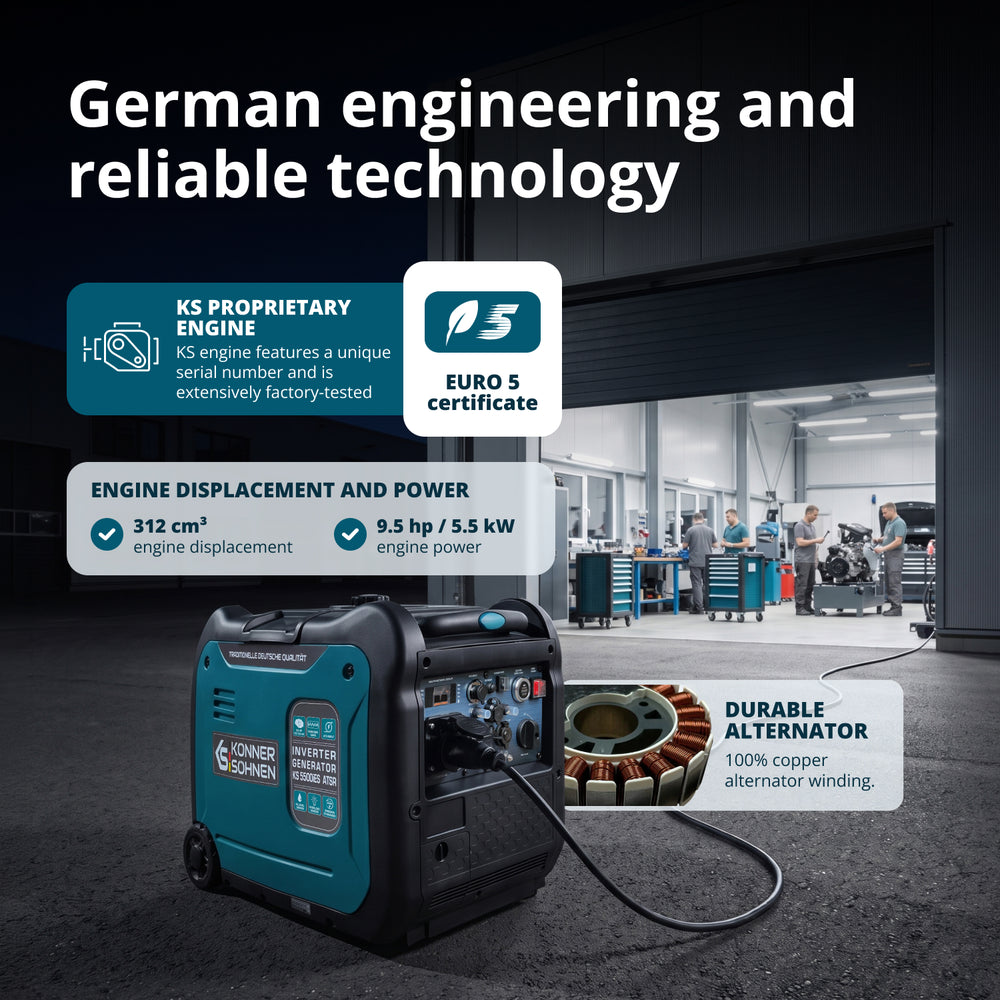

The Könner & Söhnen reliable engine is characterized by increased durability, long and stable operation, and meets all European quality standards, including EURO V.

Economy mode

The ergonomic control panel is equipped with a fuel economy mode switch. This mode reduces fuel consumption by up to 50% at small loads due to lower engine revolutions.

Automatic transfer switch

The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored. The ATS output features an 7-pin connector for connecting the ATS unit KS ATS 4/25 Inverter.

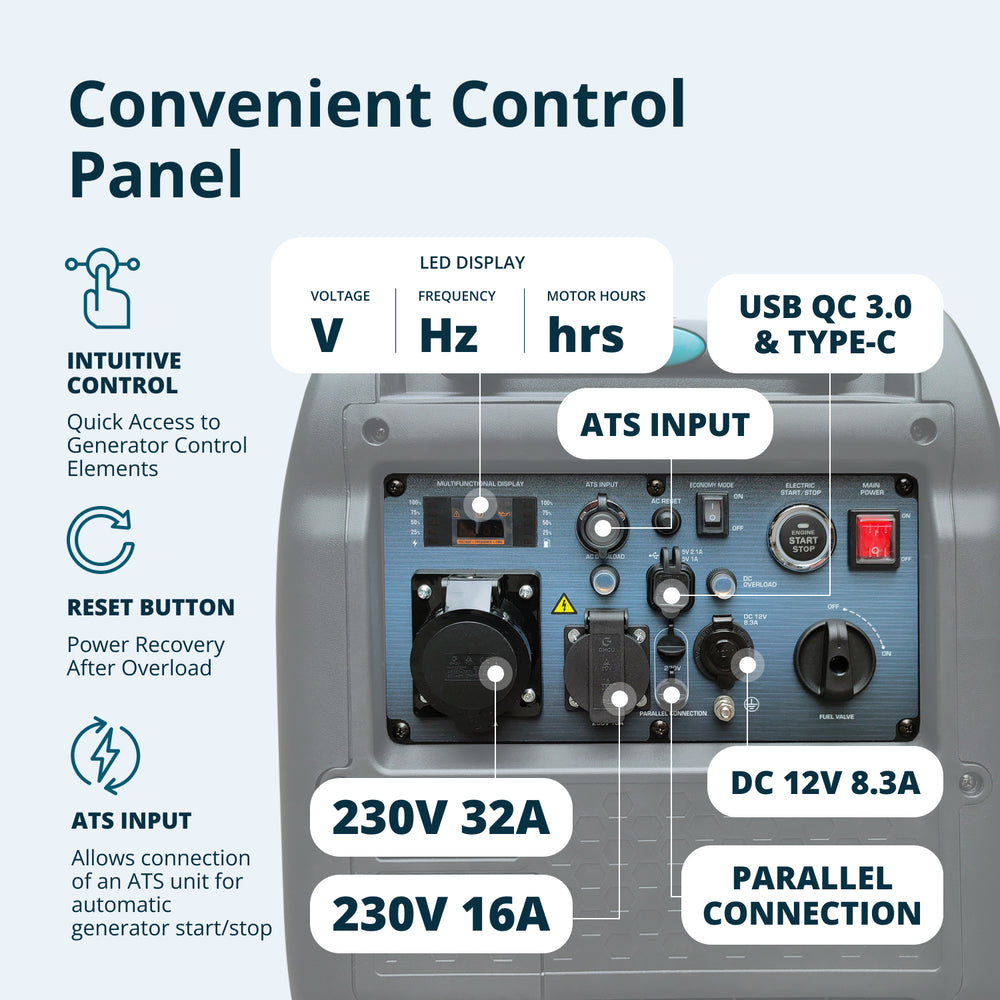

Ergonomic control panel

Convenient location of all functions: multifunction LED display (hour meter, frequency, voltage), working mode indicator, overload and short circuit protection, low oil level sensor, Reset button to reset the control system and restore voltage supply, connector for parallel connection of generators, two USB outputs (5V/1A, 5V/2.1A), 230 V socket and grounding terminal.

Low noise level

Thanks to a special protective housing, which provides a minimum noise level of 66 dB, the operation of the device will be as comfortable as possible and will not disturb others.

High quality alternator

Könner & Söhnen inverter generators are equipped with a robust brushless alternator with 100% copper winding. The high-end compact permanent magnet alternator is housed in a plastic casing and can withstand maximum loads without any damage to ensure long-term and reliable operation of the generator set.

Parallel connection

Possibility of parallel connection of two generators for increased total output and possibility of use of more powerful devices. With a cable for parallel connection, which is in a set, you can connect two inverter generators together and get an output power, which is equal to the sum of the rated power of these models.

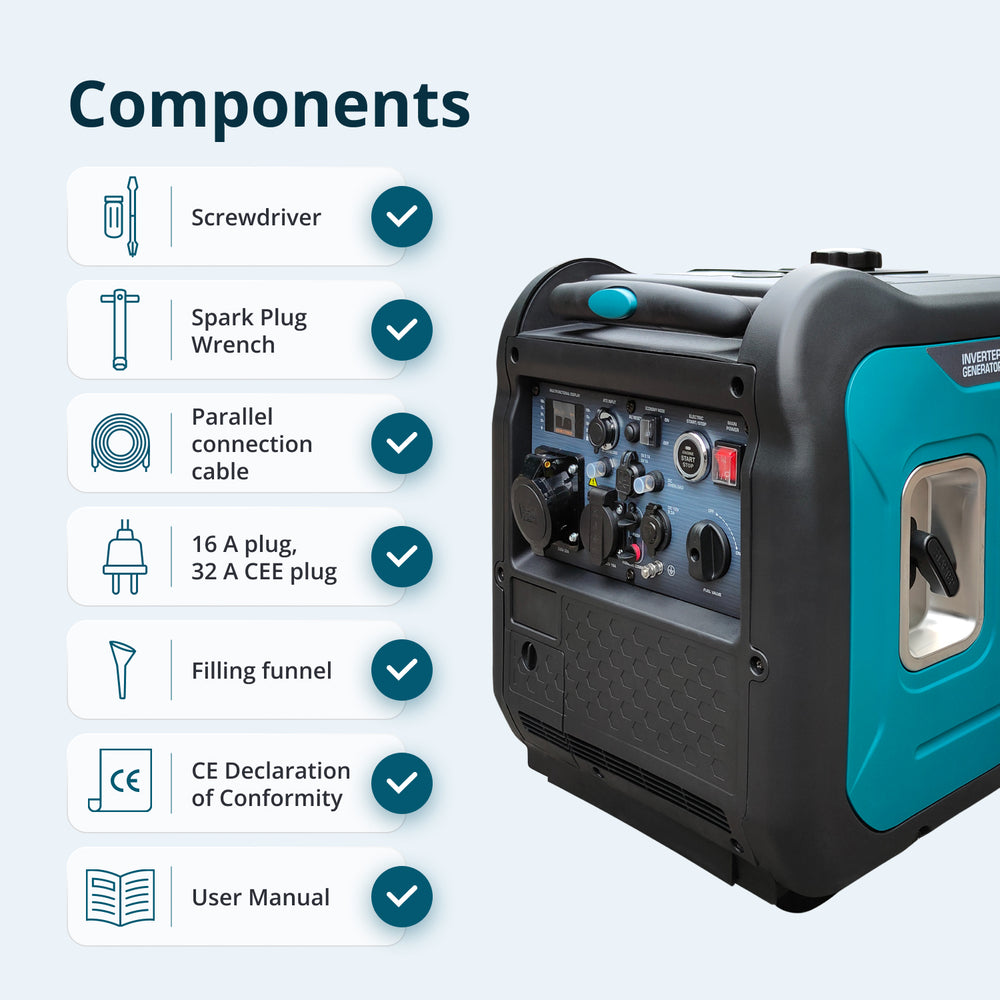

Accessories set

Generator is equipped with additional accessories: spark plug wrench, filling funnel, parallel connection cable, 16 А Schuko plug, PH2 screwdriver 6.0 mm, 32 А CEE plug.

Economy Mode

Reduces fuel consumption by up to 50% at small loads

12V/8.3A DC Socket

For powering 12V devices, providing up to 8.3A

"Reset" button

For resets the control system and restores voltage supply

2 USB-Outputs

Convenient gadget connection (5V/1A, 5V/2.1A)

Parallel Connection

Possibility of parallel connection of two generators allows for the use of more powerful devices

Multifunction Display

Load, fuel level, voltage, frequency, working hours, overload indicator, voltage indicator, oil level indicator

1x16A AC Socket

Standard Schuko 230V socket for easy connection of most appliances

1x32A AC Socket

For connecting powerful professional power tools

ATS Input

For connecting the Automatic Transfer Switch (ATS) unit

Specification

Inverter generator KS 5500iE S ATSR

Voltage, V	230
Max power, kW	5.5
Nominal power, kW	5.0
Power factor, cosφ	1
Frequency, Hz	50
Current (max), A	23.9
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A
Engine start	Manual/electric
Fuel tank volume, l	13.5
Runtime at 50% load, h***	8.4
LED display	Multifunctional: load, fuel level, voltage, frequency, working hours; overload indicator, voltage indicator, oil level indicator
Noise level Lpa (7m)/Lwa, dB	66/97
Power output DC, V/А	12V/8.3A
USB-Outputs	5V/1A, 5V/2.1A
Engine model	KS 330i
Engine cylinder volume, cm3	312
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp	9.5
Possibility of parallel connection	+
Output for ATS	+
Crank case volume, l	0.85
Accumulator (A·h)	1.6
Alternator winding	Copper
Protection class	IP23M
Includes	Generator, Packaging, Manual, Spark plug wrench, Screwdriver PH2 6.0 mm, Cable for parallel connection, Funnel, 16 A Schuko plug, 32 A CEE plug
Net dimensions (LxWxH), mm	610х470х535
Gross dimensions (LxWxH), mm	680x510x605
Net weight, kg	52
Gross weight, kg	57.8
SKU	KS 5500iE S ATSR
Barcode	4260405365579

*** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
